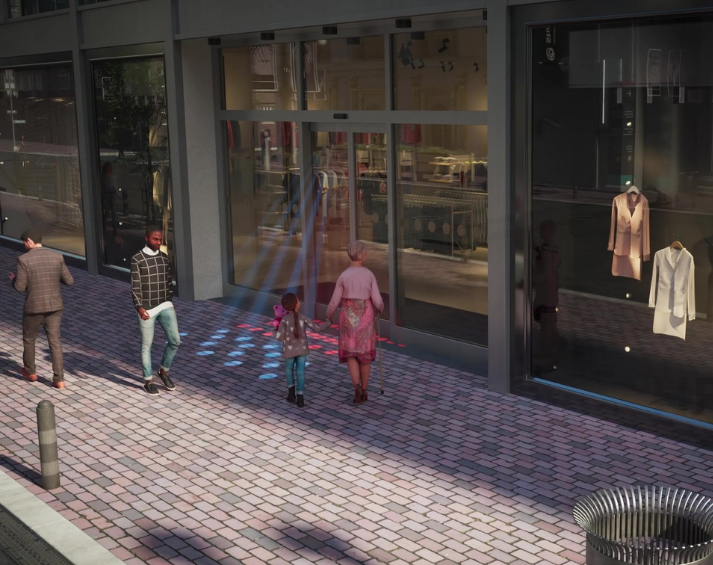

Automatic sliding door activation and safety sensor with an accurately adjustable detection area. Featuring Door Learn and Uni-directional detecting technology. EN16005 compliant.

Active Infrared Technology

  • Key Functions
  • Technical Specs
  • Detection Area
  • Accessories
  • Downloads
  • Timely Door Opening

    • Adjustable 2m detection distance ensures timely door openings.
    • Ideal for sliding door installations on busy high streets.
  • Energy Efficiency

    • Unidirectional detecting technology reduces building energy losses by as much as 15%.
    • Accurately adjustable detection area reduces false door activations.
  • Pedestrian Safety

    • Door Learn technology provides unrivalled pedestrian safety.
    • 3 row infrared safety curtain protects pedestrian in and around the door close zone.
    • Monitored safety system.
    • EN16005 compliant.
  • Reduced Time Onsite

    • Installation instructions clearly printed on the sensor body.
    • Factory pre-set dipswitch settings to conform to EN16005.
    • Intelligent software eliminates site call-backs caused by false door activations.
    • One piece sensor body construction prevents parts getting lost or broken during installation.
  • ModelHR100-CT: Dual Relay Output Automatic Door Activation + Monitored Safety
  • Detection MethodActive Infrared Detection
  • Installation Height2000mm to 3000mm (6.5ft to 10ft)
  • Sensor Dimensions230mm (W), 70mm (H), 44mm (D)
  • Presence Timer2s, 30s, 1min and infinity (Inner 3 rows) 1sec (Outer 2 rows)
  • IP Rating54
  • Power Supply12 to 24V AC or DC ± 10%
  • Power ConsumptionAC12V-2.1 [VA] (Max), DC12V-110 [mA] (Max) AC24V-2.1 [VA] (Max), DC24V-60 [mA] (Max)
  • Operating Temperature-20°C to +60°C, (-4°F to 140°F)
  • Weight250g (0.55 lbs)
  • Available ColoursBlack Product Code = HR100-CT/BL & Silver Product Code = HR100-CT/S

WC_IR/BL

Weather cover

HA-121

Internal mounting bracket HR100-CT

UTB

Under transom bracket

BF-2 Spotfinder

Infrared spot finder tool

COV-HR100/BL

Black sensor cover for HR100-CT
